One Way lurking agv benifits
One-Way lurking agv Applications
One-Way lurking AGV can be adapted to various complex environments, And automatically link the trolley by the Lifting Columns to the working site and combine a flexible assembly line, the whole operation condition and route can be scheduled by the programming system to achieve the working status. It is widely used by many manufacturing industry. Widely used in car factory, auto parts factory, toy factory, electronics factory, garment factories and other logistics needs of enterprises.
One Way lurking agv Parameter
| Item | One-Way lucking AGV |
| Model | BF1400V1 |
| Product No. | 8682001200000 |
| Product Size | L1400*W600*H350（mm） |
| Guidance Type | Magnetic Tape Guidance |
| Moving Direction | custom lines, multiple site point stop function, straight moving, left or right turn, bifurcate |
| wifi | Wifi or Radio Frequency |
| Driving Method | Differential Speed |
| Driving Power | DC24V |
| Conveying Capacity | 300kg·1000kg·750kg·1000kg |
| AGV Type | Backpack |
| Moving Speed | 0-45m/min |
| Turning Radius | minimum 300mm( magnetic tape line pavement radius) |
| Guidance Precision | ±10mm |
| Working Method | 24 Hours |
| Gradeability | 3-5 degree |
| Stop Precision | ±10mm |
| Charging Method | Manual or Automatic Charging |
| Safety Induction Range | ≤1m,Adjustable the distance for emergency brake is less than 20mm (adjustable) |
| Alarm Type | Sound-light Alarm |
| Battery | Lead Acid Battery or Lithium Battery |
| Safety Protection | Front Obstacle Testing Sensor + Mechanical Anti-collision Mechanism Double Protection + Emergency Stop Button |
| Design Life | >10 Years |

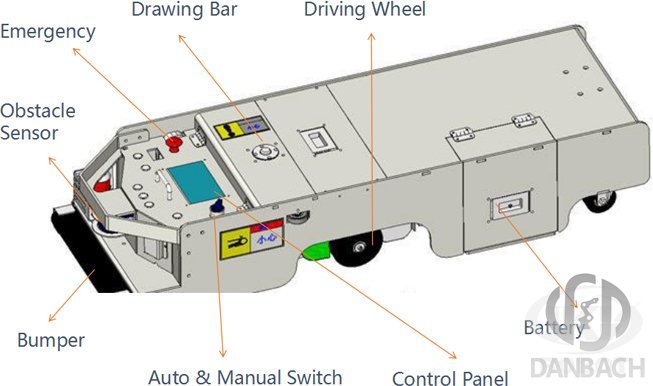

Information of one-Way lurking agv:

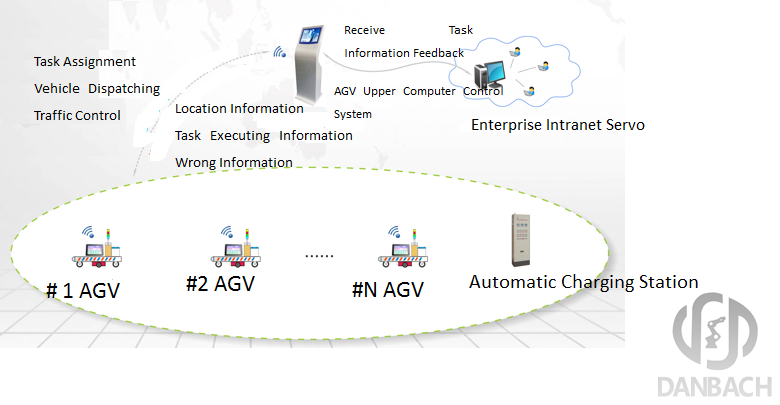

Layout lurking agv system:
One Way lurking agv manufacturers description:
Danbach Robot Jiangxi Inc. as a Professional agv vehicle manufacture in China. Danbach Robot provide professional Industry 4.0, intelligent warehousing, magnetic guided agv, robots and Laser guided vehicles, more about industrial robots please inquiry:info@dbhrobot.com
