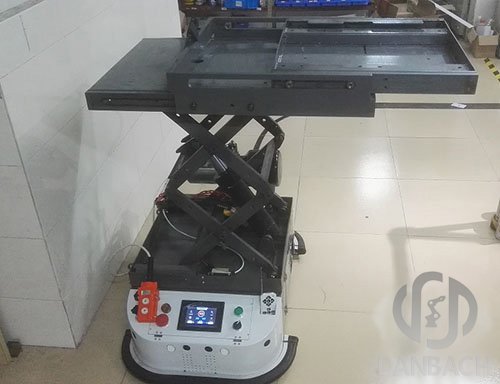

Automatic elevating AGV, also named Fork Lift Vehicle and lift AGV, Which has an active lifting platforms. Fork Lift Vehicle can convey the material to the designated material receiving platform. AGV lifting vehicle body controls scissor-type elevator to complete automatic unloading along with different height of fabric cutter.
Automatic elevating AGV Benefits:
Automatic lifting AGV has lateral movement function, which can be applied under the conditions such as narrow space, compact space or docking situation that common AGV can not meet.
Scissors-type lifting platform can achieve automatic docking whatever of different sites or height. Moreover, the roller in the platform can meet material automatic conveying.
Shorter downtimes and increased working frequency.
Lift AGV Application
Automatic elevating AGV can fully address the client’s material handling or material movement demands. This AGV robot can be applied in the primary application filed, including Warehouse/Distribution Center, Manufacturing, Food/Beverage, Pharmaceutical, Paper, Newspaper, Commercial Print, Chemical, Hospital, Automotive, etc.
Fork Lift Vehicle Parameter:
| Item | Automatic elevating AGV |
| AGV Body Size | 800*500*250mm |
| Loading Type | Scissors-type Elevator |
| Elevator Type | Electro-hydraulic Type |
| Lifting Distance | 450mm-950mm from ground |
| Product Size | 800*500*250mm |
| Guidance Type | Magnetic Guidance, Laser Guidance |
| Moving Direction | Two-way Automatic |
| Road Divided | Support 3 divided road automatic option |
| Site Identification | Industrial RFID, Number ID type |
| Function Identification | Industrial RFID, it can achieve stop, acceleration, deceleration, waiting or road selection, etc. |
| Screen | Industrial Colored Screen, 4.5 cun-11cun (Optional) |
| Control Method | Automatic Running, Manual Operation (Wired/Wifi) |
| Soft Support | Windows Client, Cell Phone Client, On-board Screen |
| Loading Method | Top lifting with rotating platform |
| Continuous Running Time | ±10mm |
| Working Mode | More than 8 hours |
| Secondary Development |
Support or open relevant software or hardware port |
Automatic elevating AGV manufacturers description:
Danbach Robot Jiangxi Inc. as a Professional agv vehicle manufacture in China. Danbach Robot provide professional Industry 4.0, intelligent warehousing, automated guided vehicle system, painting robots, robots and other industrial robotics grinding equipment, more about industrial robots please inquiry:info@dbhrobot.com
