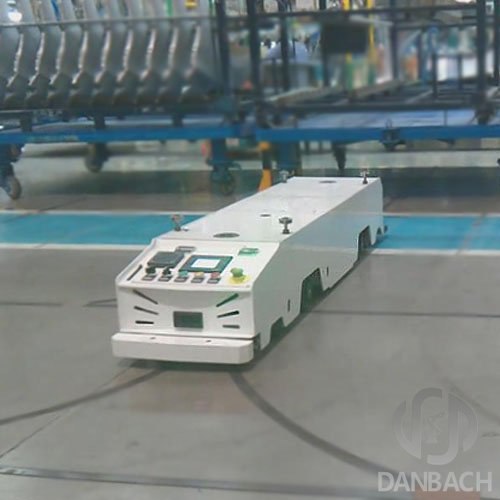

Lurking Back-Pull AGV Benefits:
Bidirectional submarine AGV Applications:
Bidirectional submarine AGV is widely used in electronics factories and household appliance factories.
Bidirectional low-profile AGV Parameters:
| AGV Type | Bidirectional submarine AGV |
| External Dimension | L850*W350*H350（mm） |
| Control Method | PLC/AGV Moving Control Chip (Optional) |
| Guidance Method | Magnetic Tape Guidance/ Light Electrical Guidance/Laser Guidance(Optional) |
| Moving Direction | Differential Speed Bidirectional |
| Communication Function | Wireless Lane (Optional) |
| Driving Method | Differential Speed Driving |
| Driving Power | DC24V、DC48V |
| Driving Lifting Type | Manual or Electrical Lifting |
| Carrying Capacity | 100KG, 300KG, 500KG, 1000KG(Optional) |
| Moving Speed | 30-45m/min (optional) |
| Turning Radius | the minimum 500mm (line pavement radius) |
| Guidance Precision | ±10mm |
| Working Type | 24 Hours |
| Gradeability | 3-5 degree |
| Stop Precision | ±10mm |
| Charging Type | Manual Charging （optional automatic charging) |
| Battery | Maintenance Free Battery，Continuous discharge number＞300 times |
| Safety Induction Range | ≤3m,Adjustable 20mm the distance for emergency brake is less than 20mm |
| Human-machine Interaction | the touch screen human-machine interaction is adopted to easily set the parameter, site or alarm. |
| Working Environment | Indoor Temperature: 0-40 Celsius Degree Relative Humidity: 40%-80% |
| Safety Protection | Front Obstacle Testing Sensor + Mechanical Anti-collision Mechanism |
| Design Life |
>10 Years |

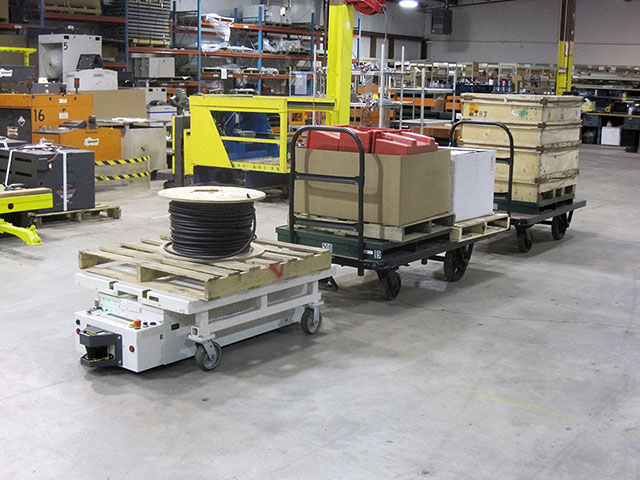

Transport process of Bidirectional submarine AGV:
Bidirectional AGV transportation of skip into the machine arm positioning, again by jack-up positioning fixture jack-up, positioning to the position of employment, after completion of assembly, Bidirectional AGV will skip to the next station.Or AGV will skip to manual assembly station, to specify a location for assembly workers, location of work completed, AGV will skip to the next station.
Project results of Bidirectional submarine AGV:
By Bidirectional AGV fixture handling, positioning, realization of intelligent battery materials, transport and production assembly manufacturing flexibility, greatly reduce the labor intensity, save labor costs, save a space, shorten time, improve production efficiency.Can adjust production line according to production requirements, in case of emergency, Bidirectional AGV can be set in a run to the waiting area, effectively reduce the impact on the capacity.
Bidirectional submarine AGV manufacturers description:
Danbach Robot Jiangxi Inc. as a Professional automated guided vehicle manufacture in China. We resulted in expert project support and the development of robotic technology, specializing in the provision of industrial robotic automation solutions. Providing Unidirectional lurking AGV, bidirectional lurking AGV, Towing AGV, Forklift AGVs and so on. More details please Email to: info@dbhrobot.com
