Laser guided vehicles， also called as automated laser guided vehicles, laser guidance forklift AGV, Which are a series of automated guided vehicles developed by Danbach according to the actual requirements of different industries. Our laser guidance forklift AGV is mainly composed of agv vehicle body, lifting device and so on. The equipment bear the empty tray, with the tray, paper roll and other lifting work.
Laser navigation AGV are four main types of laser guided vehicles: high reach lift LGVs, fork LGVs, conveyor-bed LGVS and reel LGVs.
Laser guided vehicles Characteitics:
Laser is constantly transmitted & received by the same sensor.
AGV car don't need other positioning device on the floor.
The AGV compares this to the known map and path, then steering is adjusted to keep on track, with this constantly updated positioning.
The end user can revise the moving path at any time via software.
Automated laser guided vehicles Applications:
Palletizing or unloading material;
The Laser navigation AGV guidance line needs to be frequently changed;
The working condition is harsh, the magnetic field is strong, and the positioning precision needs to be high.
TWith use of flexible reflective strips, AGVs can easily get to work improving the functionality of warehouses in most industries.
Laser Guided Vehicles offer a flexible solution to easily automate your facility quickly.
Automated laser guided vehicles Parameter:
|
Item
|
Laser Guidance Forklift AGV
|
|
Product Model
|
CCJPT10V1
|
|
Product Model
|
8692000000000
|
|
Product Size
|
L2200*W802*H710(mm)（Customizable）
|
|
Guidance Type
|
Laser Guidance
|
|
Moving Direction
|
Forward, Backward, Left, Right or Bifurcate
|
|
Wifi
|
WiFi·Wifi or Radio Frequency
|
|
Driving Method
|
Steering Wheel Control
|
|
Driving Power
|
DC24V
|
|
Carrying Capability
|
1000kg（Customizable）
|
|
AGV Type
|
Forklift Type
|
|
Moving Speed
|
35m/min
|
|
Turing Radius
|
1705-2075mm（it is subject to the forklift outline）
|
|
Gradeability
|
5-7 degree
|
|
Guidance Precision
|
±10mm
|
|
Stop Precision
|
±10mm
|
|
Working Method
|
24 Hours
|
|
Charging Method
|
anual Charging or Automatic Charging
|
|
Safety Induction Range
|
≤1m,Adjustable the distance for emergency brake is less than 20mm (adjustable)
|
|
Alarm Type
|
Sound-light Alarm
|
|
Battery
|
Lead Acid Battery or Lithium Battery
|
|
Safety Protection
|
Front Obstacle Testing Sensor + Mechanical Anti-collision Mechanism Double Protection + Emergency Stop Button
|
|
Design Life
|
>10 Years
|

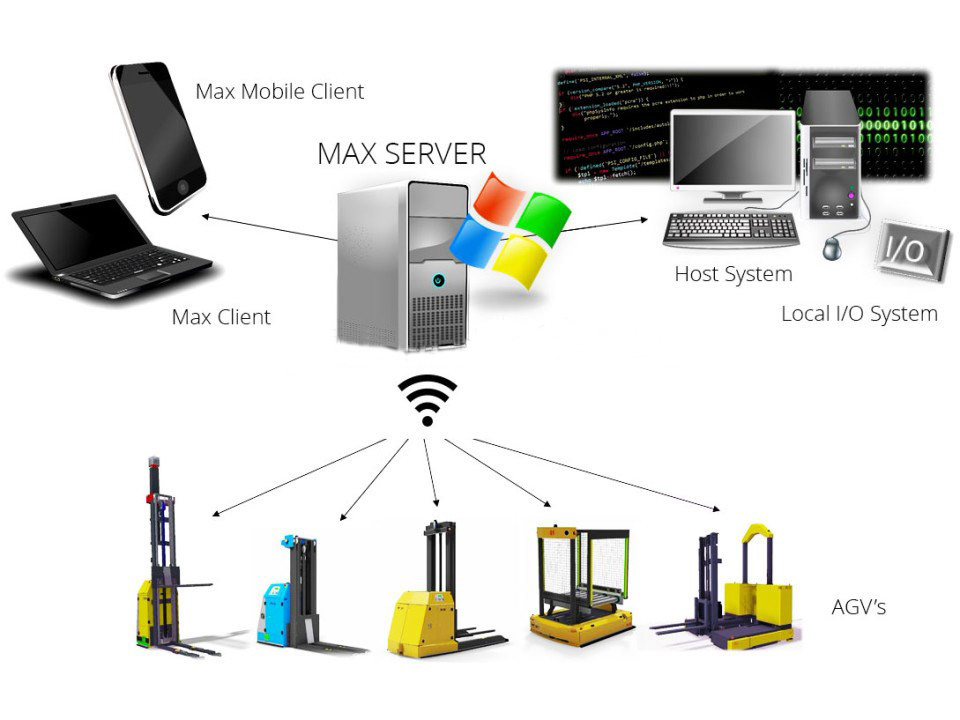

Laser Forklift AGV System :
Laser Forklift AGV manufacturers description:
Danbach Robot Jiangxi Inc. as a Professional automated guided vehicle manufacture in China. Danbach Robot provide professional Industry 4.0, intelligent warehousing, welding robot, painting robots, robots and other AGVs equipment, more about industrial robots please inquiry:info@dbhrobot.com
