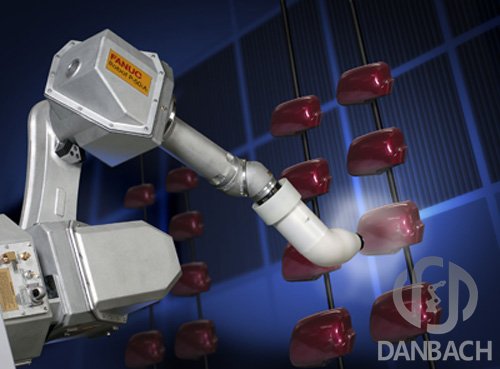

Painting robots introduction
Painting robots, also known as Spray robots and Industrial painting robots, Which can be used for automatic painting or spraying other paint industrial robot. Automatic painting robots generally use hydraulic drive, with fast action, explosion-proof performance and other characteristics.
Painting robots advantages
Spray accurate, normal operation time is long, paint consumption of the province, the work of short, 24 hours without interruption of work, high reliability.
Painting speed, spray evenly, according to the workpiece changes automatically adjust the gun level, before and after the angle position, spray size control flexibility, 360 degrees omnidirectional no dead spray.
Danbach design spray robot explosion-proof, environmental protection, high safety performance, easy to operate and easy to learn.
Spraying painting robot can also paint 2 - 5 different products, one arrived in more than one Taiwan.
Spray robots have long life, no wearing parts, easy maintenance.
Industrial painting robots can be installed in a number of different locations (wall, shelf, rail) allowing for even greater flexibility.
Robot spraying system applications
Automatic painting robots are widely used in automobiles, Enamel and other technology production areas. From traditional applications to electrostatic handling, Danbach's automated spray system is designed to meet a variety of spray needs. Spray painting robots have been used in a variety of robots in industry such as plastic parts (internal and external) and metal parts (rust Processing, etc.), recycling industry (liquid, powder), wood industry, agricultural equipment, household appliances, consumer electronics, aerospace, optics.
Industrial painting robots Parameter
|
Type
|
Painting robot
|
|
|
Axes
|
4, 5, 6
|
|
|
Payload
|
16kg
|
|
|
H-Reach
|
1801mm
|
|
|
Robot Mass
|
235kg
|
|
|
Mounting
|
floor, shelf
|
|
|
Weight (KG)
|
180
|
|
|
Maximum load
|
8KG
|
|
|
Armsapn（mm）
|
1365
|
|
|
Repositioning Accuracy（mm）
|
±0.1
|
|
|
Protection Class
|
IP65
|
|
|
Motion Range
|
Axis 1
|
±170º
|
|
Axis 2
|
-85º～120º
|
|
|
Axis 3
|
-170º～85º
|
|
|
Axis 4
|
±180º
|
|
|
Axis 5
|
-135º～135º
|
|
|
Axis 6
|
±360º
|
|
|
Motion Speed
|
Axis 1
|
120º/S
|
|
Axis 2
|
120º/S
|
|
|
Axis 3
|
120º/S
|
|
|
Axis 4
|
225º/S
|
|
|
Axis 5
|
145º/S
|
|
|
Axis6
|
300º/S
|
|
Industrial painting robots can provide exceptional part accessibility. Not only are robotic arms slim and far-reaching, but robots can be installed in a number of different locations (wall, shelf, rail) allowing for even greater flexibility. More details please inquiry: info@dbhrobot.com
