Forklift AGVs are able to automatically pick up and deliver pallets, rolls, carts, containers, and many other transportable loads. Robot forklift AGVs can also be manually driven off the Guidepath to pick up a load and then placed back on the Guidepath for automatic travel and delivery. Pick up and delivery can be performed at floor level or to stands, racks, and conveyors.
Forklift AGVs Types:
AGV can be divided into: fork type, latent type, carrying type, sorting type, composite type, traction type. The forklift AGV is subdivided into: pallet forklift AGV, stacker forklift AGV. We can see the application of forklift AGV in logistics.
Forklift AGVs Features:
Off-the-shelf components
Graphical touchscreen
Manual and automatic vehicle dispatch
Sick laser bumper safety system
Electric steer/drive assembly
Industrial lead-acid batteries
PC on board running Windows®
Heavy duty welded steel construction with powder coat finish
RF Ethernet (802.11)
Robot forklift AGVs Applications:
Moving loads from receiving to production/warehouse
Warehousing (narrow aisle, deep-lane stacking, block storage, racking)
Buffer storage
End-of-line handling
Picking from conveyors, palletizers, stretch wrappers
Trailer loading/unloading
Transport between production and warehouse
|
Item
|
Forklift AGVs
|
|
Product Model
|
CCJPT10V1
|
|
Product Model
|
8692000000000
|
|
Product Size
|
L2200*W802*H710(mm)（Customizable）
|
|
Guidance Type
|
Laser Guidance, Magnetic Guidance |
|
Moving Direction
|
Forward, Backward, Left, Right or Bifurcate
|
|
Wifi
|
WiFi·Wifi or Radio Frequency
|
|
Driving Method
|
Steering Wheel Control
|
|
Driving Power
|
DC24V
|
|
Carrying Capability
|
1000kg（Customizable）
|
|
AGV Type
|
Forklift Type
|
|
Moving Speed
|
35m/min
|
|
Turing Radius
|
1705-2075mm（it is subject to the forklift outline）
|
|
Gradeability
|
5-7 degree
|
|
Guidance Precision
|
±10mm
|
|
Stop Precision
|
±10mm
|
|
Working Method
|
24 Hours
|
|
Charging Method
|
anual Charging or Automatic Charging
|
|
Safety Induction Range
|
≤1m,Adjustable the distance for emergency brake is less than 20mm (adjustable)
|
|
Alarm Type
|
Sound-light Alarm
|
|
Battery
|
Lead Acid Battery or Lithium Battery
|
|
Safety Protection
|
Front Obstacle Testing Sensor + Mechanical Anti-collision Mechanism Double Protection + Emergency Stop Button
|
|
Design Life
|
>10 Years
|

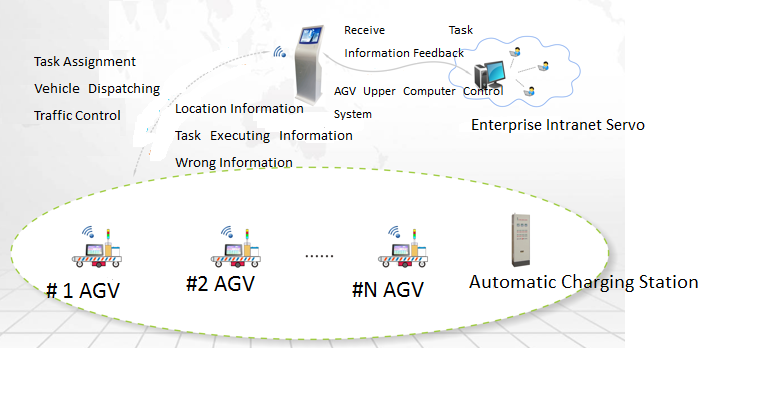

The Robot forklift AGVs System:
Robot forklift AGVs manufacturers description:
Danbach Robot Jiangxi Inc. as a Professional automated guided vehicle manufacture in China. Danbach agv products include forklift AGV,laser AGV,warehouse logistics AGV,lurking AGV,load transfer AGV,lifting AGV, etc.
Danbach Robot provide professional Industry 4.0, intelligent warehousing, welding robot, painting robots, Laser guided vehicles, more about industrial robots please inquiry:info@dbhrobot.com
